Getting the right fitting for an IBC tote connection is half plumbing knowledge and half decoding the tote's non-standard thread sizes. The bottom valve uses BSP thread, the top bung uses S60x6, and the small vent uses NPT — three different standards on one container. Connecting these to standard North American hardware requires specific adapters, and using the wrong material for your fluid type means early failure.
This guide covers every IBC fitting type, what thread standard each uses, how to seal them correctly, and which specific products work best.
At a Glance
| Fitting | Type | Size | Best For | Price |
|---|---|---|---|---|
| Banjo 2" Bulkhead Fitting Most Versatile | Bulkhead | 2" | Wall penetrations, outlet additions | ~$12 |
| Camlock Coupling Set (2") | Camlock | 2" | Quick-disconnect hose connections | ~$18/pair |
| Banjo 2" x 3/4" Reducer | Threaded Reducer | 2" to 3/4" | Garden hose connection | ~$8 |
| S60x6 DIN Adapter | Bung Adapter | S60x6 | Top bung connections | ~$15 |
| IBC Tote Cage Nut Kit | Cage Hardware | M12 | Cage repair and attachment | ~$22/set |
IBC Tote Fitting Types
Reviewed & Ranked
- Watertight without sealants
- No tools needed — hand-tight
- Extremely versatile
- Very affordable
- Requires drilled hole
- 15 PSI max — not for pressurized systems
- EPDM not for all chemicals
- One-handed quick connect
- Industry-standard compatibility
- Durable for repeated use
- Aluminum/SS available for chemicals
- Requires matched pair (male + female)
- Plastic types not for hot fluids
- Can drip when disconnected under pressure
- Solves the most common connection need
- Very inexpensive
- No tools needed
- Works with any garden hose
- Restricts flow to 3/4" diameter
- Not for industrial flow rates
- Plastic degrades in UV over years
IBC Tote Fitting Basics
The three IBC tote connection points
Bottom outlet: 2-inch BSP butterfly valve. Connect to a valve, pump, camlock, or hose adapter here. This is your primary outlet for fluid removal.
Top bung (large): S60x6 thread — this is the 6-inch fill/access opening on top. Bung adapters convert it to 2-inch or 4-inch pipe thread for fill lines, level gauges, or immersion equipment.
Top bung (small): A 2-inch NPT vent plug. Replace with a vented cap or a fitting to connect a vent line or pressure gauge.
Hole sizing for bulkhead fittings
Each bulkhead fitting requires a specific hole size in the tote wall. Common sizes: 1/2-inch bulkhead → 1-inch hole; 3/4-inch → 1-3/8-inch hole; 1-inch → 1-5/8-inch hole; 2-inch → 2-3/8-inch hole. Use a stepped drill bit or hole saw. HDPE cuts cleanly — a sharp hole saw leaves a smooth, clean edge that seals properly against the gasket.
Material selection for chemical service
For water and agricultural fluids, polypropylene fittings with EPDM gaskets are standard and economical. For acids and oxidizers, use PVDF (Kynar) fittings with PTFE gaskets. For high-temperature or solvent service, 316 stainless steel fittings. When in doubt, consult a chemical compatibility chart for your specific fluid — fitting failures in chemical service are dangerous and expensive.
IBC Tote Thread Sizes & Connection Specs
IBC totes have three distinct connection points, each using a different thread standard. Knowing the exact thread type and size before ordering fittings prevents costly mismatches — BSP and NPT threads look similar but are not interchangeable.
BSP vs. NPT — How to Tell Them Apart
BSP (British Standard Pipe) and NPT (National Pipe Thread) are visually similar but are not interchangeable. Key differences:
- Thread angle: BSP uses a 55° thread angle; NPT uses 60°. This is why BSP and NPT threads will cross-thread or seal poorly when mixed.
- Parallel vs. tapered: BSPP (parallel) threads seal on a face gasket or O-ring. BSPT (tapered) and NPT threads seal on the taper itself with PTFE tape. Most IBC tote bottom valves use BSPP — they need a gasket face seal, not tape.
- Quick test: Try a 2" BSP fitting and a 2" NPT fitting side by side — they may thread in one or two turns but will feel wrong and won't seal. If unsure, bring a fitting to a hydraulic shop for thread identification.
Common Fitting Adapter Combinations
- Bottom valve → garden hose: 2" BSP male × ¾" GHT female adapter — lets you connect a standard garden hose directly to the tote valve

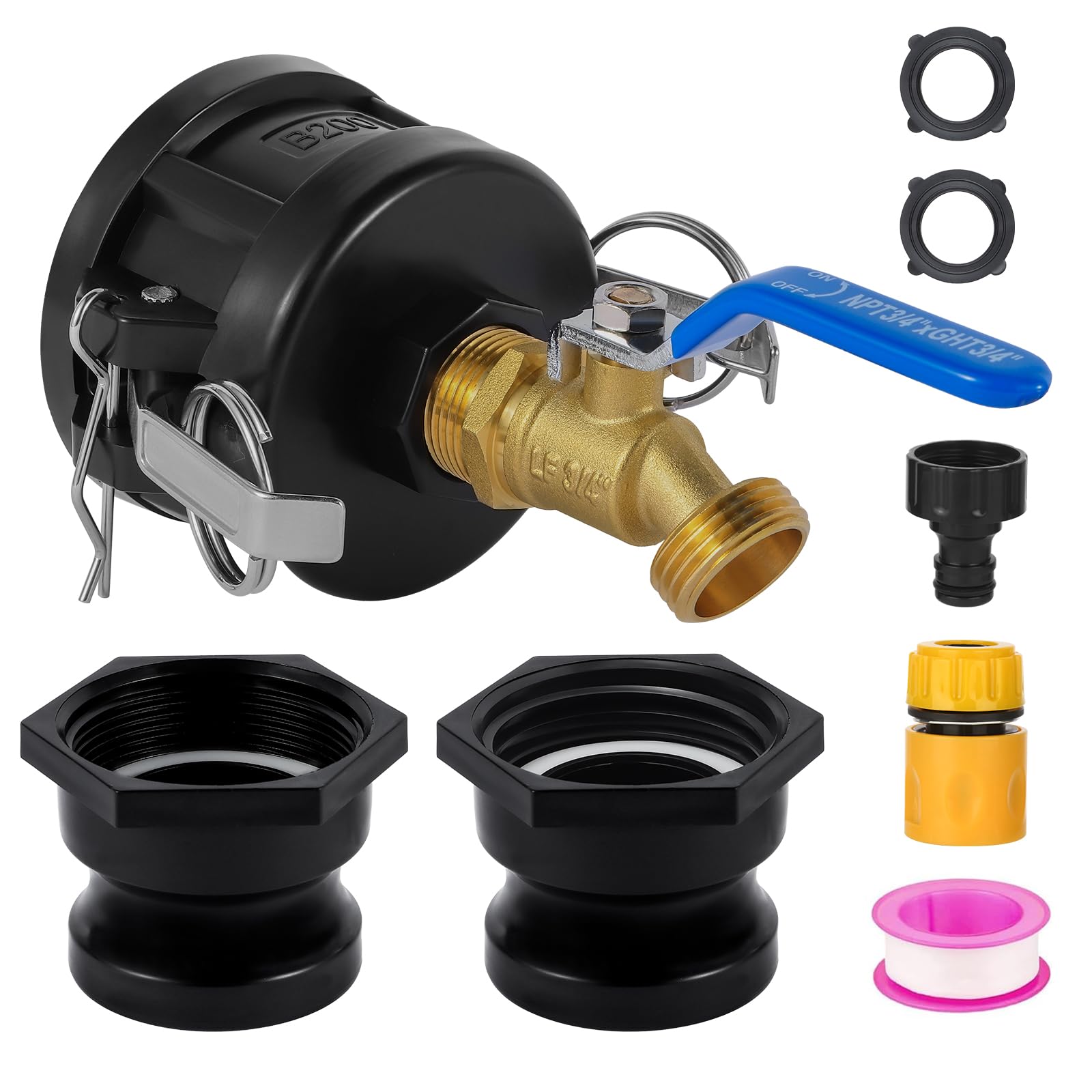

- Bottom valve → camlock: 2" BSP male × 2" camlock female — standard for quick-disconnect pump connections
- Top bung → fill line: S60×6 male × 2" NPT female bung adapter — connects a 2" fill line to the top opening
- Top bung → suction tube: S60×6 bung adapter with dip tube — draws from the bottom of the tote through the top, useful when the bottom valve is inaccessible

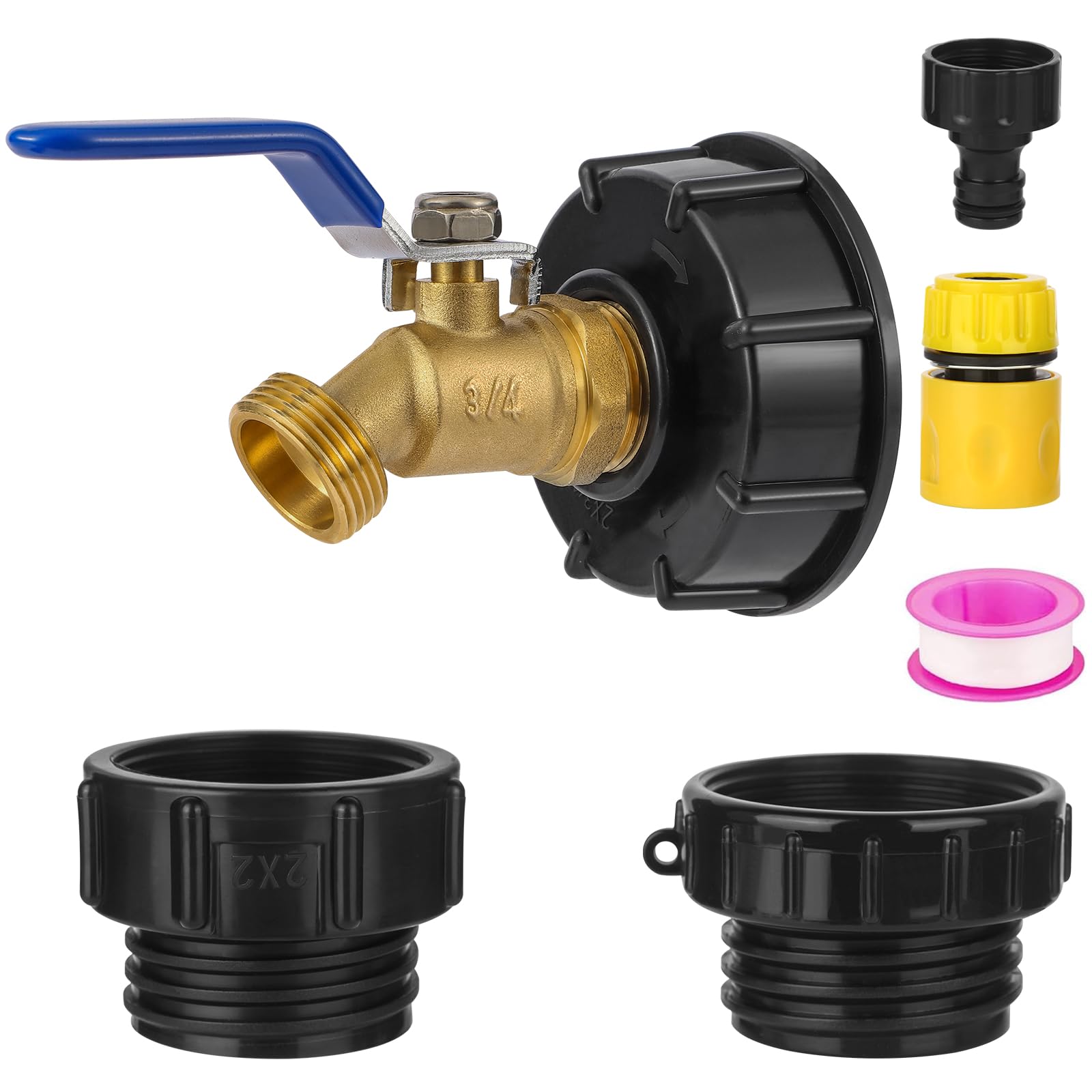

Most Popular IBC Tote Garden Hose Adapters
The most common IBC tote fitting purchase is a garden hose adapter — it lets you connect a standard ¾" garden hose directly to the bottom valve for filling, draining, or gravity-feed irrigation. These three are the highest-selling options on Amazon for 275 and 330-gallon totes.
